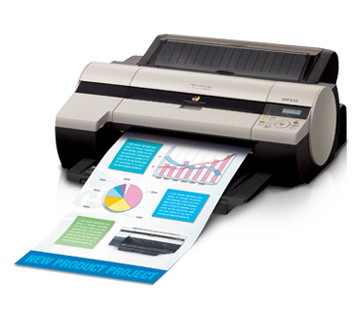

Canon Printer imagePROGRAF iPF510

Specifications for imagePROGRAF iPF510

Print head (Nozzles) MBk, BK, C, M, Y: 5,120 nozzles for MBK, 2560 nozzles for each other colour
Total: 15,360 nozzles
Maximum print resolution (dpi) 2400 x 1200dpi
Ink tanks
Capacity 130ml each (bundled starter ink: 90ml)
Supply Tubing system (independent ink tanks)
Media feed Cassette, Manual feed (top-loading), Manual feed (front-loading), roll paper
Maximum printable length 18m
Maximum media width 431.8mm (17")
Media size
Cut sheet Cassette: ISO A4, A3, A3+, A2, ARCH B, JIS B3, B4, ANSI Letter, Legal, B, B super, C (17" x 22"), 8" x 10", 10" x 12", 10" x 15", 12" x 16", 14" x 17", 16" x 20" (US photo), 13" x 22"
Manual feed from the top: 203.2mm (8") x 279.0mm – 431.8mm (17") x 609.6mm (24")
Manual feed from the front: 203.2mm (8") x 520.0mm – 431.8mm (17") x 609.6mm (24")
Roll paper Media Width: 203.2mm (8") – 431.8mm (17")
Margins
Printable area Cassette: Top: 3mm, bottom: 3mm, left: 3mm, right: 3mm
Manual feed: Top: 3mm, bottom: 23mm, left: 3mm, right: 3mm
Roll paper: Top: 3mm, bottom: 3mm, left: 3mm, right: 3mm
Recommended print area Cassette: Top: 20mm, bottom: 27mm, left: 7mm, right: 7mm
Manual feed: Top: 20mm, bottom: 23mm, left: 7mm, right: 7mm
Roll paper: Top: 20mm, bottom: 5mm, left: 7mm, right: 7mm
Media Type Plain paper, High resolution paper, Coated paper, Heavyweight coated paper, Premium matte paper, Matte photo paper, Glossy photo paper, Semi-glossy photo paper, Heavyweight glossy photo paper, Heavyweight semi-glossy photo paper, Glossy paper, Photo paper pro, Photo paper plus, Photo paper plus semi-glossy, Synthetic paper, Proofing paper, CAD tracing paper, CAD translucent matte film, POP board and others
Borderless printing media width (roll media only) 254mm (10"), 257mm (B4), 329mm (A3+), 355.6mm (14"), 406.4mm (16"), 420mm (A2), 431.8mm (17")
Maximum Outside Diameter of Roll Paper 150mm
Media Thickness
Cut sheet Cassette: 0.08 – 0.3mm
Manual feed from the top: 0.08 – 0.5mm
Manual feed from the front: 0.5 – 1.5mm
Roll paper 0.07 – 0.8mm
Interface
Standard 10base-T / 100base- TX, USB2.0 Hi-speed
Option IEEE 1394
Printer language GARO (Graphic Art language with Raster Operations)
Printer driver OS support AC100V - 240V
Windows Windows 98 SE / Me / 2000 / XP / Server2003
Macintosh Mac OS 9.1 / 10.2 or later
Printer driver languages US-English, French, German, Italian, Spanish, Chinese (Mac OS 9 excluded), Korean (Mac OS9 excluded), Japanese
Memory 128MB
Hard disk -
Power supply AC 100 – 120 V (50 / 60Hz), AC 220 – 240 V (50 / 60Hz)
Power consumption
Operation 100W or less
Standby (At the low power mode) 100V – 120V: 6W or less
220V – 240V: 7W or less
Power off (standby) 1W or less
Acoustic noise level Operation: Approx. 53dB (A) or less
Standby: Approx. 35dB (A) or less
Operational Environment Temperature: 15 – 30°C
Humidity: 10 – 80% (condensation free)
Dimensions (W x D x H)
Main unit 819 x 733 x 317mm
Main unit with options / Standby 819 x 810 x 344mm (with Auto Roll Feed Unit)
Weight Approx. 39kg (with Auto Roll Feed Unit: approx. 43kg)
Environment certifications ENERGY STAR, RoHS directive, IT ECO Declaration, WEEE, Executive Order of the President of the United States of America, Law on Promoting Green Purchasing, GPN, J-MOSS (Green mark)
Price: MYR7,100.00
Quantity:
Add to cart
