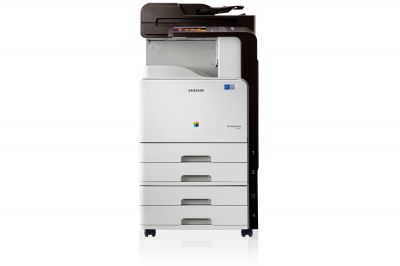

Samsung CLX 9201NA A3 Multi Functional Printers with 1 Year Warranty
  (Enlarge)
Samsung CLX 9201NA A3 Multi Functional Printers with 1 Year Warranty

20ppm, Colour Copier, Function: Print, Scan, Copy, Comes with DADF, Dual Paper Cassettes, Network, Duplex, Postscript Ready, Support External solutions
(One year on-site warranty)

Toners: CLT-Y809S (15K pages base on 5% coverage (A4 size)); CLT-M809S (15K pages base on 5% coverage (A4 size)); CLT-C809S (15K pages base on 5% coverage (A4 size)); CLT-K809S (20K pages base on 5% coverage (A4 size)); C/M/Y/K Drum unit: CLT-R809 (Capability: 50K pages); Waste Toner Container: CLT-W809 (Capability: 50K pages)

General


Functions Standard Print, Copy, Scan, Network, Duplex
  Optional Fax, NW PC Fax
Processor 1GHz (Dual Core)
Operational Panel 7" Color Touch-Panel LCD, 1024 x 600 (WSVGA)
Memory Standard 1GB
Hard Disk Drive 320GB or higher (Usable Space: 88GB)
Interface Standard High Speed USB 2.0 Device/Host, Ethernet 10/100/1000 BASE TX
Warm-up time From Power On 34 sec
  From Sleep 25 sec
Power consumption Max 1.5kW( Ready : 100W, Low power : 16W, Sleep : 1.5W )
Noise Level Copying: 53dBA, Printing: 48dBA, Ready: 30dBA, Sleep: 27dBA
Dimension (WxDxH) 560 x 600 x 844 mm / 22.0" x 23.6" x 33.2:" (including DADF)
Weight 76 Kg / 167 lbs (including DADF)
Max. Monthly Duty Cycle 100,000 Pages
Network Security SSL/TLS, IP sec, SNMPv3, IPv6, Protocol & Port Management, IP/MAC filtering
Certification CCC(ISO15408), IEEE P2600-2008, WHQL Compliance

Print


Speed Speed (Mono) 20 ppm in A4/Letter
  Speed (Color) 20 ppm in A4/Letter
First Print Out Time First Print Out Time (Mono) 10 sec (From Ready Mode)
  First Print Out Time (Color) 12 sec (From Ready Mode)
Resolution Default : 2,400 x 600 dpi Effective Output (600 x 600 x 2 bit) / Max : 9,600 x 600 dpi effective output (600 x 600 x 4 bit), 1,200 x 1,200 dpi (Half Speed)
Emulation PCL5c, PCL6, Postscript 3, PDF 1.7+, XPS
Duplex Print Built-in
Operating System Windows 2003/Vista/2008/7, Mac OS X10.5 ~ 10.6, Linux
Network Protocols IP Management(DHCP, DHCPv6, BOOTP, AutoIP, SetIP, Static) / Discovery Protocol (SLP, UPnP, Bonjour, DNS, WINS) / Printing Protocol(TCP/IP(9100), TCP/IP(9100)v6 , LPR, LPR6 , IPP, WSD) / Management Protocol(SNMPv1.2, SNMPv1.2(IPv6), SNMP3, SNMPv3(IPv6), HTTP, HTTPs, LDAP, SMTP) / Scan Protocol(SMTP, FTP, SMB, Twain for Network) / Security Protocol(SMB, Kerberos, LDAP, IPsec)
Direct Print Support Jpeg,Tiff,PDF,Samsung PRN

Copy


Speed Speed (Mono) 20 cpm in A4/Letter
  Speed (Color) 20 cpm in A4/Letter
First Copy Out Time First Copy Out Time (Mono) 7.9 seconds
  First Copy Out Time (Color) 9.6 seconds
Resolution 600 x 600 dpi
Reduce / Enlarge Range 25% - 400%
Multi Copy 9,999 Pages
Copy Features ID Copy, Clone Copy, N-UP Copy, Poster Copy

Scan


Speed Speed (Mono) 45 ipm (300 dpi / A4/Letter)
  Speed (Color) 45 ipm (300 dpi / A4/Letter)
Color Mode Mono / Gray / Color
Compatibility Network TWAIN
Resolution (Enhanced) Up to 4,800 x 4,800 dpi
Scan Destinations E-mail, USB, FTP, SMB, HDD, PC

Fax


Compatibility ITU-T G3, Super G3
Modem speed 33.6 Kbps
Resolution Up to 600 x 600 dpi (Mono)
Compression Method MH/MR/MMR/JBIG
Memory HDD Back-up
Auto Dial Support
Fax Feature Speed Dial, Group, Dial, On-hook Dial, Auto Redial, Caller ID, Secure Reception, Fax forwarding, etc.

Paper Handling


Input Capacity Cassette 520-Sheet Standard Cassette x 2
  Multipurpose tray 100-Sheet MP Tray
  Other Options 520-Sheet Optional Cassette x 2
  Maximum 2,180 Sheets ( 1,140-Sheet Standard + 1,040-Sheet Optional DCF)
Media Type Cassette Plain Paper / Thin Paper / Bond / Punched / Pre-Printed / Recycled / Label / CardStock / Letterhead / Thick / Cotton / Colored / Archive / Glossy
  Multipurpose tray Printer Default / Plain Paper / Thick Paper / Thin Paper / Bond Paper / Color Paper / CardStock / Labels / Envelope / Preprinted / Letterhead / Recycled Paper / Cotton / Archive / Glossy
  Other Options Plain Paper / Thin Paper / Bond / Punched / Pre-Printed / Recycled / Label / CardStock / Letterhead / Thick / Cotton / Colored / Archive / Glossy
Media Size Cassette Cassette 1: 148 x 210 mm ~ 297 x 354 mm (5.8" x 8.2" ~ 11.7" x 14") / Cassette 2: 148 x 210 mm ~ 297 x 432 mm (5.8" x 8.2" ~ 11.7" x 17")
  Multipurpose tray 98 x 148 mm ~ 297 x 432 mm (3.8" x 5.8" ~ 11.7" x 17")
  Other Options 148 x 210 mm ~ 297 x 432 mm (5.8" x 8.2" ~ 11.7" x 17")
Media Weights Cassette Plain Paper: 71~90g/㎡(21~24 lb), (Duplex : 20~24lb) / Thick Paper: 91~105g/㎡(25~28 lb), (Duplex : 25~28lb) / Heavy Weight 1 Paper : 106~120g/㎡ / Heavy Weight 2 Paper : 121~175g/㎡ / Extra Heavy Weight 1 Paper : 176 ~ 216g/㎡ / Thin Paper: 60~70g/㎡ (16~19 lb) / Bond Paper: 105~120g/㎡ (28~32 lb) / Punched Paper: 71~90g/㎡ (19~24 lb) / Pre-Printed : 71~90g/㎡ (19~24 lb) / Recycled : 60~90g/㎡ (16~24 lb) / CardStock : 105~163g/㎡ (28~43lb) / Letterhead : 71~90g/㎡ (19~24 lb) / Cotton paper : 75~90g/㎡ (20~24 lb) / Label : 120~150g/㎡ (32~40 lb)
  Multipurpose tray 16~47lb (60 to 176g/㎡) ( Simplex, Duplex )
  Other Options Plain Paper: 71~90g/㎡(21~24 lb), (Duplex : 20~24lb) / Thick Paper: 91~105g/㎡(25~28 lb), (Duplex : 25~28lb) / Heavy Weight 1 Paper : 106~120g/㎡ / Heavy Weight 2 Paper : 121~175g/㎡ / Extra Heavy Weight 1 Paper : 176 ~ 216g/㎡ / Thin Paper: 60~70g/㎡ (16~19 lb) / Bond Paper: 105~120g/㎡ (28~32 lb) / Punched Paper: 71~90g/㎡ (19~24 lb) / Pre-Printed : 71~90g/㎡ (19~24 lb) / Recycled : 60~90g/㎡ (16~24 lb) / CardStock : 105~163g/㎡ (28~43lb) / Letterhead : 71~90g/㎡ (19~24 lb) / Cotton paper : 75~90g/㎡ (20~24 lb) / Label : 120~150g/㎡ (32~40 lb)
Output Capacity Standard: 500 Sheets (Center Output Tray), Optional Inner Finisher: 350 Sheets (50-Sheet Top Tray / 300-Sheet Finishing Tray / Stapling / Offset)
adf Type DADF
  Document Capacity 100 Sheets
  Document Size A3, A4 LEF, A4 SEF, A5 LEF, A5 SEF, B4, B5 LEF, B5 SEF
  Document Weight 60~175g/㎡(16~46 lb)

Consumables


Toner Black 20,000 pages (5% Coverage)
  Color (C/M/Y) 15,000 pages (5% Coverage)
Imaging Unit/Drum Black 50,000 pages (5% Coverage)
Waste Toner Container 50,000 pages (5% Coverage)

Option

Cabinet Stand, Dual Cassette Feeder, Job Separator, Inner Finisher, Fax Kit, FDI Kit, Working Table, SmarThru Workflow, CounThru



Solution




Device Management Yes
Output Management Yes
Document Management and Distribution Yes
Security Yes
Mobility Yes



Price: RM13500.00
